Andover Audio Introduces
EA-102
Planar Magnetic Headphones
MEET THE EA102 SERIES
Authentic Sound with Planar Diaphragm Driver
At the heart of our headphones lies a meticulously engineered planar magnetic driver. This advanced technology ensures unparalleled phase coherency and an ultra-fast transient response, reproducing music with breathtaking realism, accuracy, and detail.

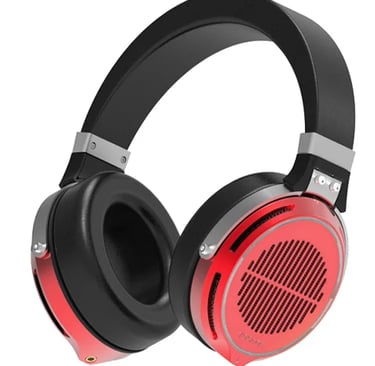

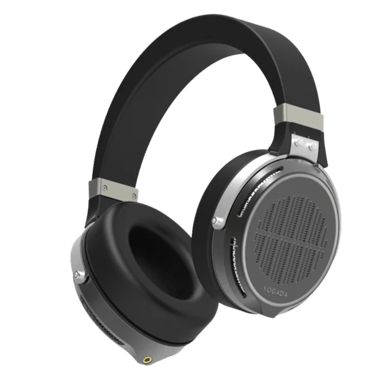

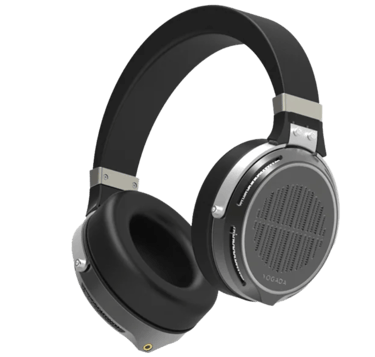

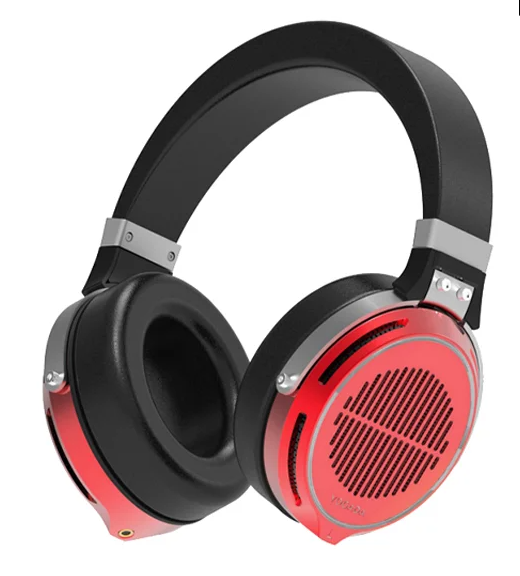

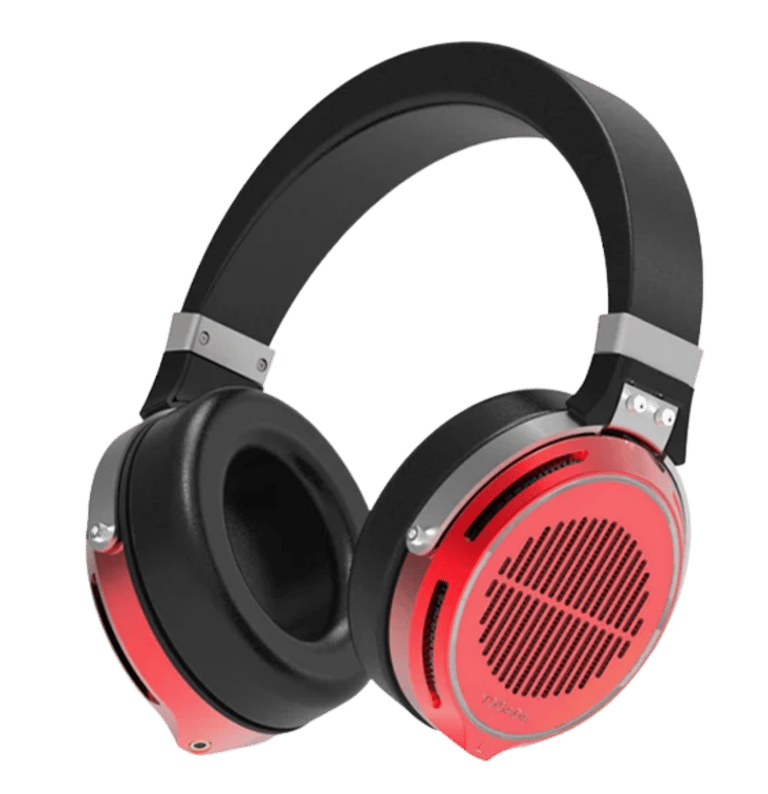

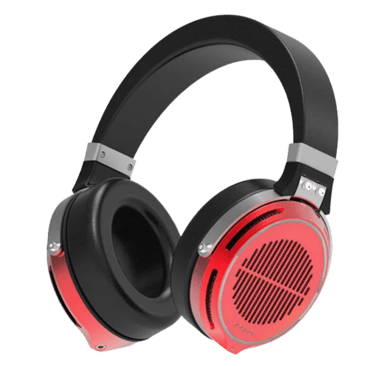

EA-102 Planar Magnetic Headphones
The EA-109 represents a breakthrough in planar magnetic headphone design, engineered for the discerning audiophile. At its core is a large φ75mm planar diaphragm driver, setting a new standard for audio reproduction and performance.
A high-performance headphone with excellent technical capabilities

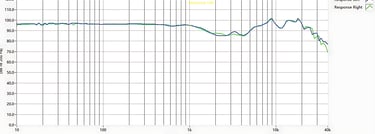

This chart displays the frequency response of the left (blue) and right (green) channels of the planar magnetic headphones, measuring sound pressure level (SPL) in decibels (dB) across the audible spectrum from 10 Hz to 40 kHz.
Patented Vibration Suppression Technology
This patented, non-linear vibration suppression technology allows the driver to extend its frequency response, ensuring flawless sonic clarity.

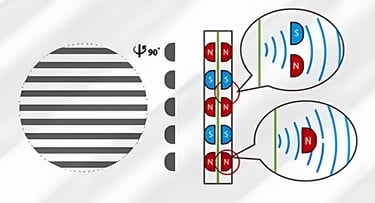

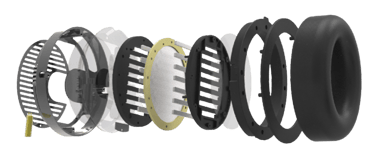

Exclusive Dual-Magnetic Planar Technology
Acoustic Transparency: The magnets are engineered to be acoustically transparent, effectively "disappearing" before the sound waves. This design significantly reduces adverse effects and interference.
Unimpeded Sound Passage: The unique shape and density of the stealth magnets allow sound to pass directly through the structure, preserving audio fidelity without the degradation or reflections caused by conventional magnet designs.
Technical Specifications
mpedance: 32 Ω ± 15% @ 1 kHz
Sensitivity: 92 dB/mW ± 3 dB @ 1 kHz
Frequency Response Range: 10 Hz – 40,000 Hz
Total Harmonic Distortion (THD): ≤ 0.2% @ 100 dB
Rated Input Power: 100 mW
Maximum Input Power: 300 mW
Channel Balance: ≤ 2 dB (100 Hz – 5 kHz)
Driver Unit: Planar diaphragm, Ø75 mm
