Andover Audio Introduces
EA-U3

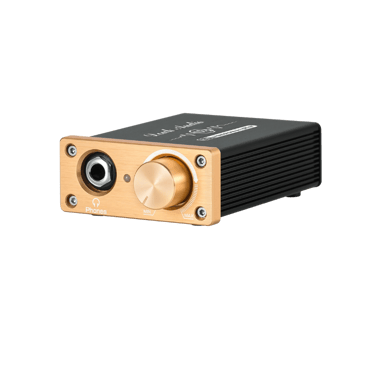

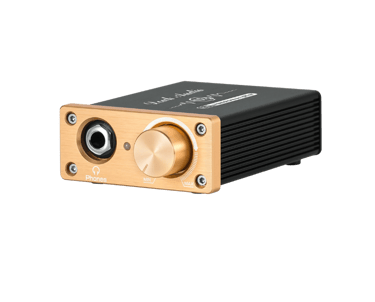

MEET THE EA-U3 SERIES
Mini size AMP
Mini size with exquisite appearance and most cost-effective, brings big surprise for all audiophiles, easily to drive most headphones in the market, providing larger power, better sound field and details, very suitable for home/office desltop audio system use.
Features
Adopting innovative circuit design, DC 5-20V wide input working voltage, the amplifier circuit can always work at a high voltage of 26V, and the background noise index is excellent. With wide frequency response extension, excellent transient response, excellent purity and transparency, and good dynamic range.
Adopting original TI-NE5532 classical op amp and transistor expanding current circuit, using 1300mA large current output transistor working in class A status, with ultra-low distortion, and the sound is warm and delicate, full and mellow.
Pluggable op amp socket design, convenient to upgrade different op amps and bring much DIY fun and playability for audiophiles. Smooth and mellow sound, suitable for listening to vocals or string music, classic or pop music, and even with unique charm when playing rock.
Mini size with exquisite appearance and most cost-effective, brings big surprise for all audiophiles, easily to drive most headphones in the market, providing larger power, better sound field and details, very suitable for home/office desltop audio system use.
Technical Specification:
Audio input: stereo L/R RCA
Audio output: 6.35mm headphone jack (with 6.35mm to 3.5mm adapter)
Output power: ≥1300mW (32Ω)
Matched headphone impedance: 18-600Ω
Frequency response: 20-30KHz
Signal to noise ratio: ≥110DB
Max output amplitude voltage: 25V
Input voltage: DC 5-20V
Dimension(W*D*H): 67*93*30mm / 2.64*3.66*1.18in
Net weight: 169g / 0.37lb
Package weight: 310g / 0.68lb
