Andover Audio Introduces
EA-DAC5
MEET THE EA-DAC5 SERIES

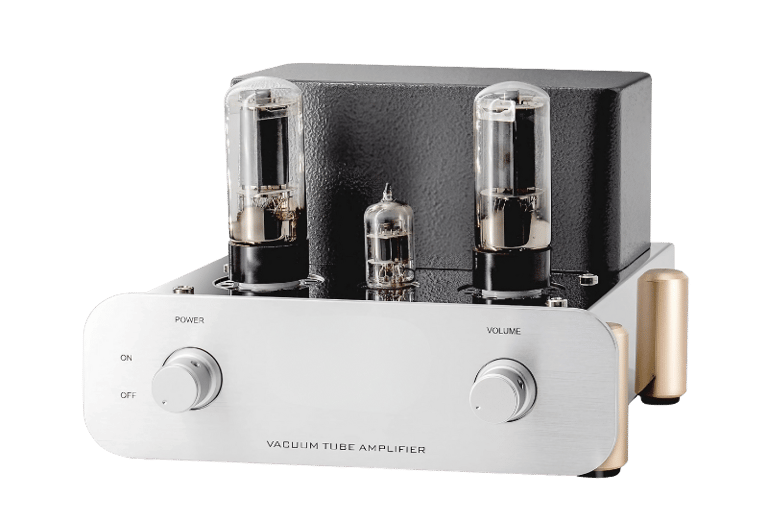

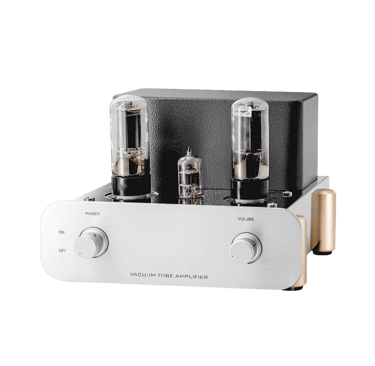

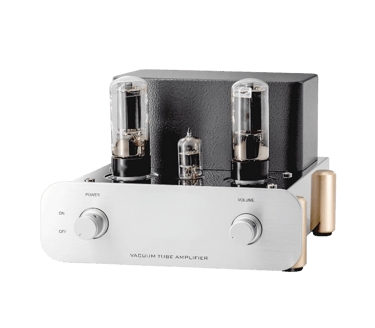

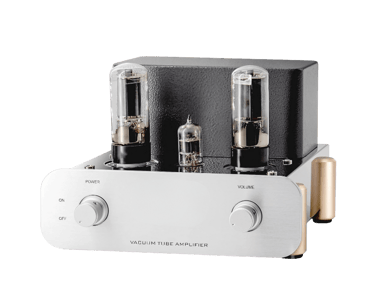

Mellow and thick DAC5 bile machine
6L6 is a beam tetrode specially designed for audio power amplifier, using this control as an audio amplifier, the tone is mellow and clear, the sound base is thick, the overtone is rich, and the color is colorful, especially to express the human voice and music emotion, very lyrical, interesting, long listening.
Features
DAC5 single-end machine, using 6N1 to push 6L6 classic line, simple and good sound, coupled with the use of EATASONIC all their own research and development of wound audio special transformer, sound performance is more natural and transparent.
In addition to 6L6, DAC5 machine is also compatible with 6P3P, 6V6 and other power tubes, a multi-purpose machine, listen to different sounds.
Technical Specification:
Product Model: DAC5
Output Power: 8W*2
Operation Mode: Single-Ended
Frequency Response: 20Hz—335KHz
Output Impedance: 4Ω, 8Ω
Power Tubes: 6L6
Total Harmonic Distortion: ≤1% (1kHz)
Driver Tubes: 6N1
Input Impedance: 100KΩ (three sets of input signals)
Dimensions (Width × Depth × Height): 210×220×160mm
